Battery Energy Storage Systems Tailored for All Power Needs

What is Infinity Cube?

At the heart of our innovative offerings lies the Infinity Cube, a cutting-edge Battery Energy Storage System designed to power machines of all sizes – from standalone to hybrid power solutions. The Infinity Cube excels in storing local energy efficiently through our advanced cloud energy management system, addressing over-sizing concerns, reducing costs, and optimising energy consumption based on variable load usage. It is an indispensable tool for businesses across the Asia Pacific region. Its ease of maintenance and scalability further enhance operational efficiency in demanding environments.

Key features

The Infinity Cube is the heart of a battery-based micro grid. Its ability to store local energy cost-effectively and its ease of maintenance makes Infinity Cube a necessary tool. It addresses over-sizing issues, reduces costs, and improves efficiency by optimising energy consumption based on variable load usage. Ideal for both on-grid and off-grid power systems, it also integrates seamlessly with solar power and hybrid power setups, enabling sustainable and independent energy solutions for a variety of demanding environments.

Fully automated

Infinity Cube can be seamlessly configured to automatically activate the generator when battery power is low.

Energy Efficient and Sustainable

It is designed for efficient power supply while reducing costs and CO2 emissions.

Fast charging

Infinity Cube is ideal for machines and applications with high energy demand and variable load profiles as it efficiently covers both low loads and peaks.

Hybrid mode

The Infinity cube is an intelligent machine, able to synchronise with generators or grids to maximise power and achieve zero downtime.

Quiet

Without an engine, the Infinity cube is much quieter compared to diesel generators making it perfect for noise-sensitive areas.

Safety features

Built-in fire fire extinguishing system that prevents fire by detecting high temperature. It also sends an alarm to the system if the high temperature remains.

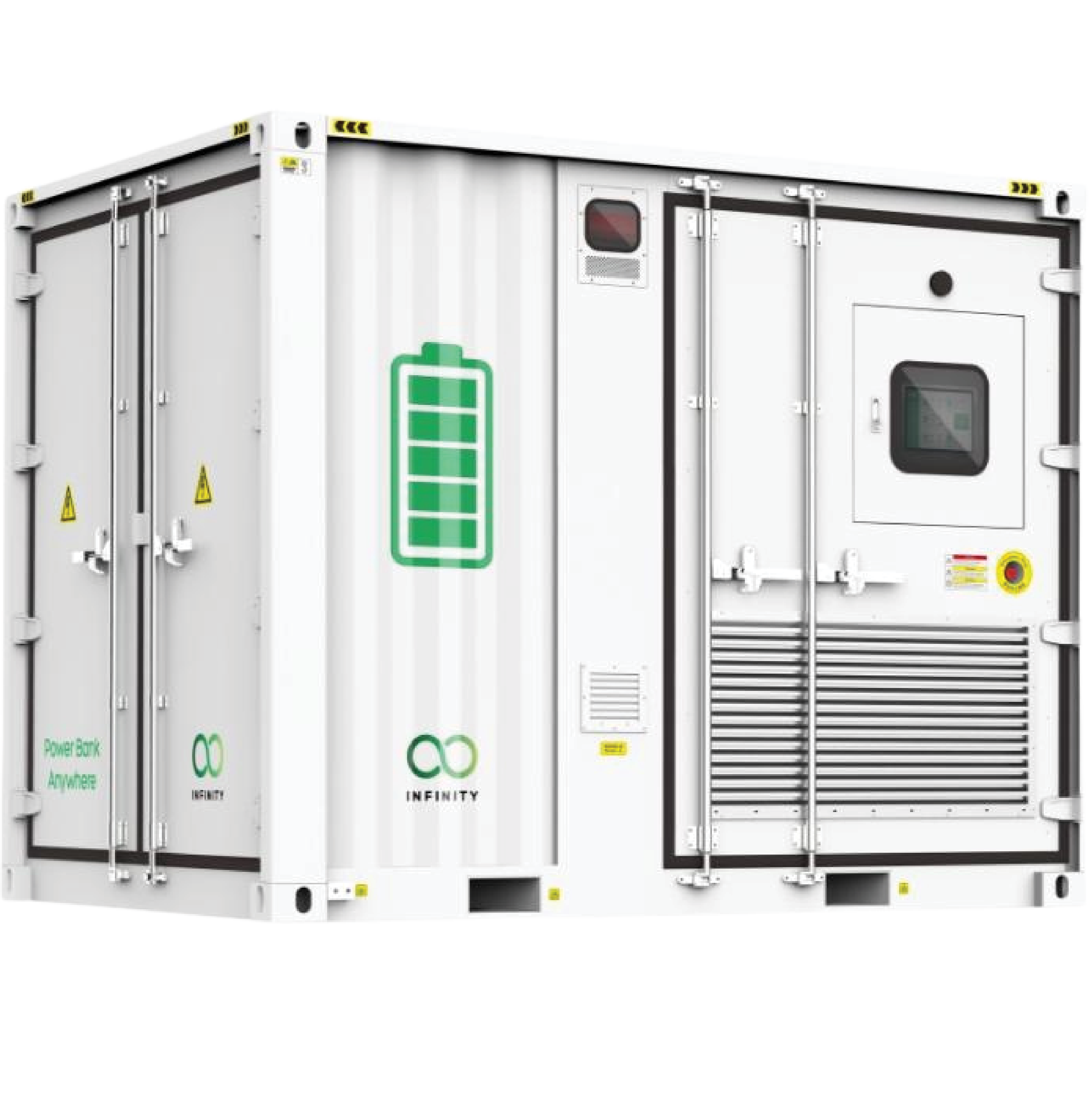

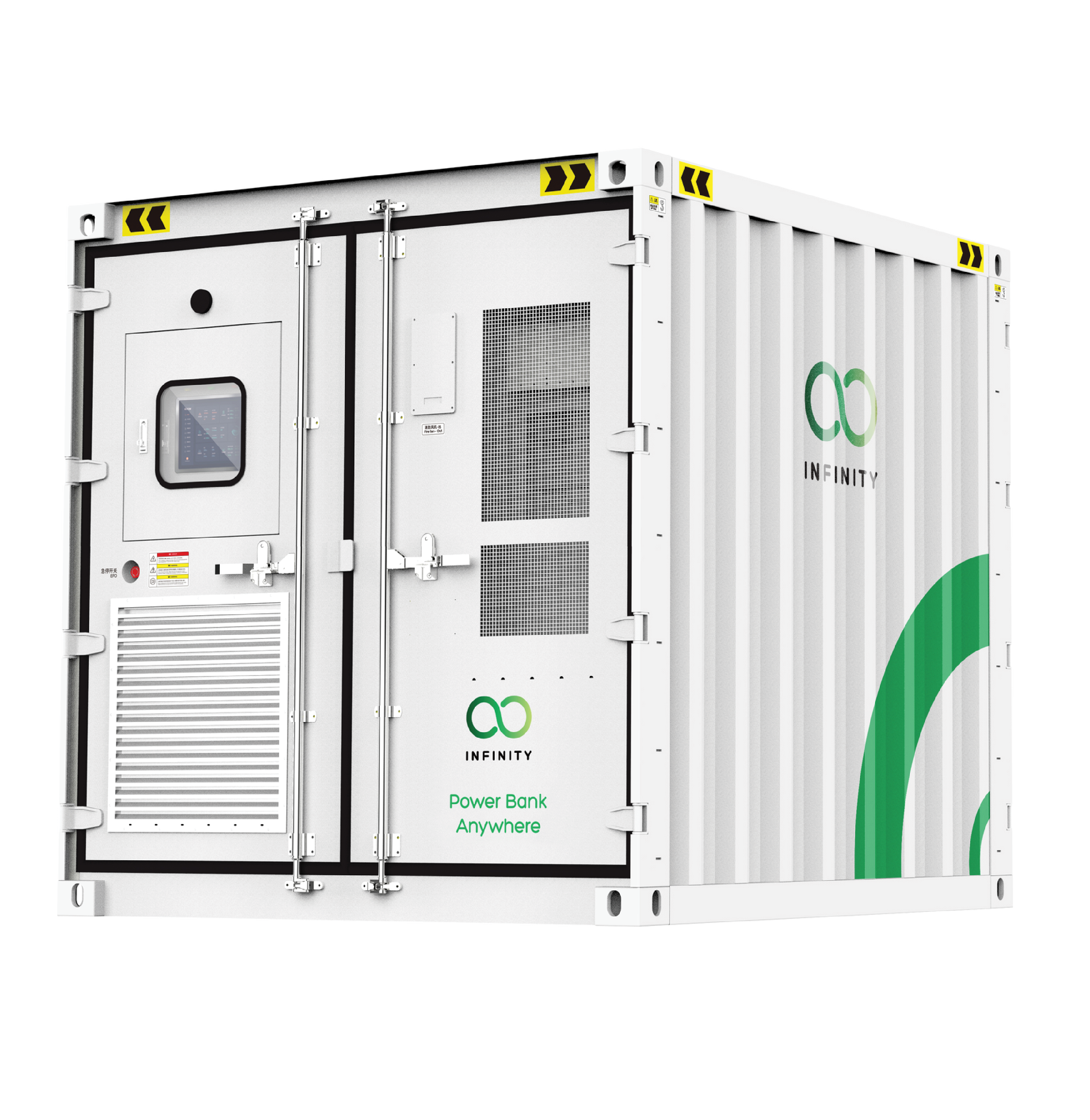

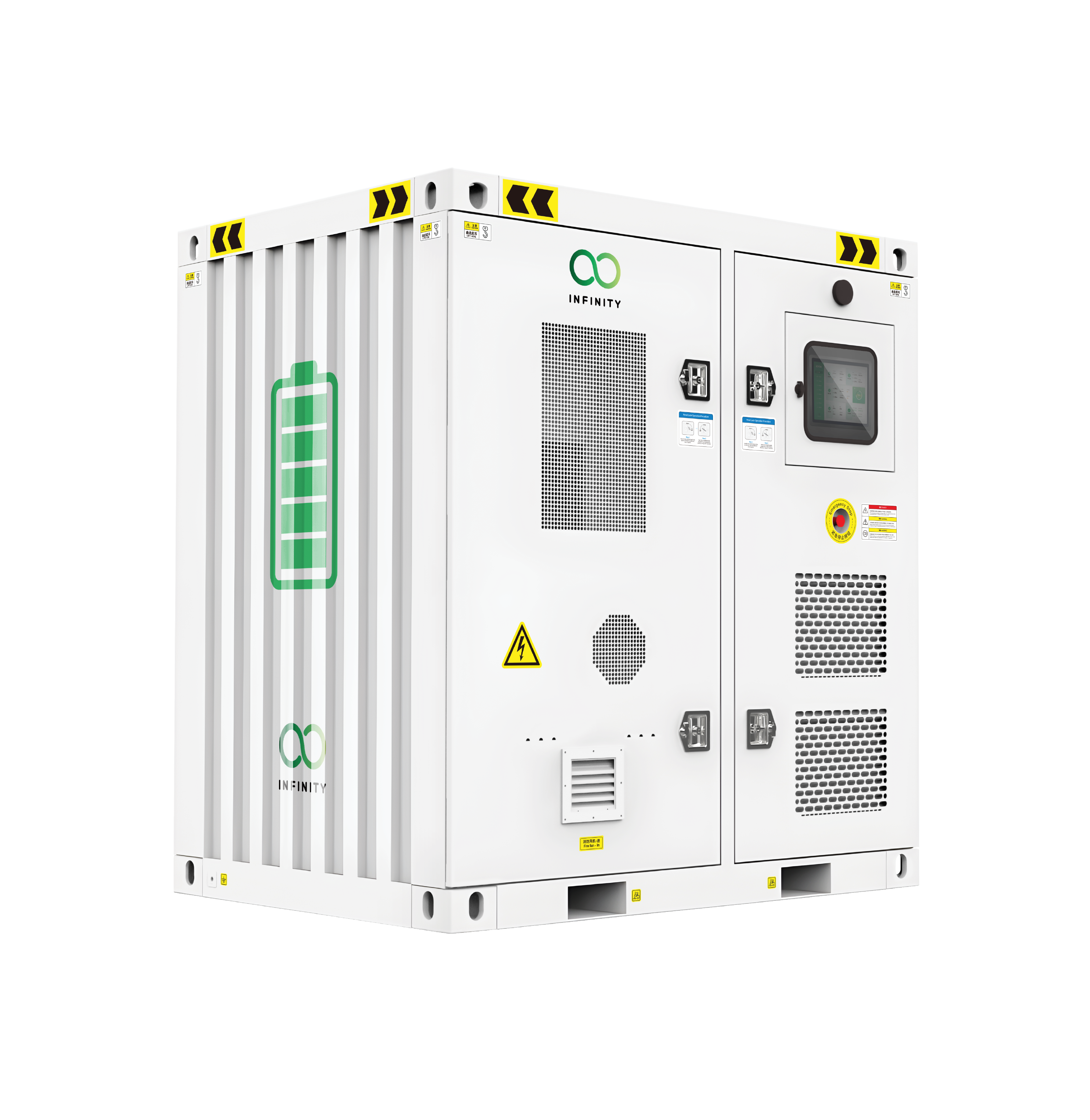

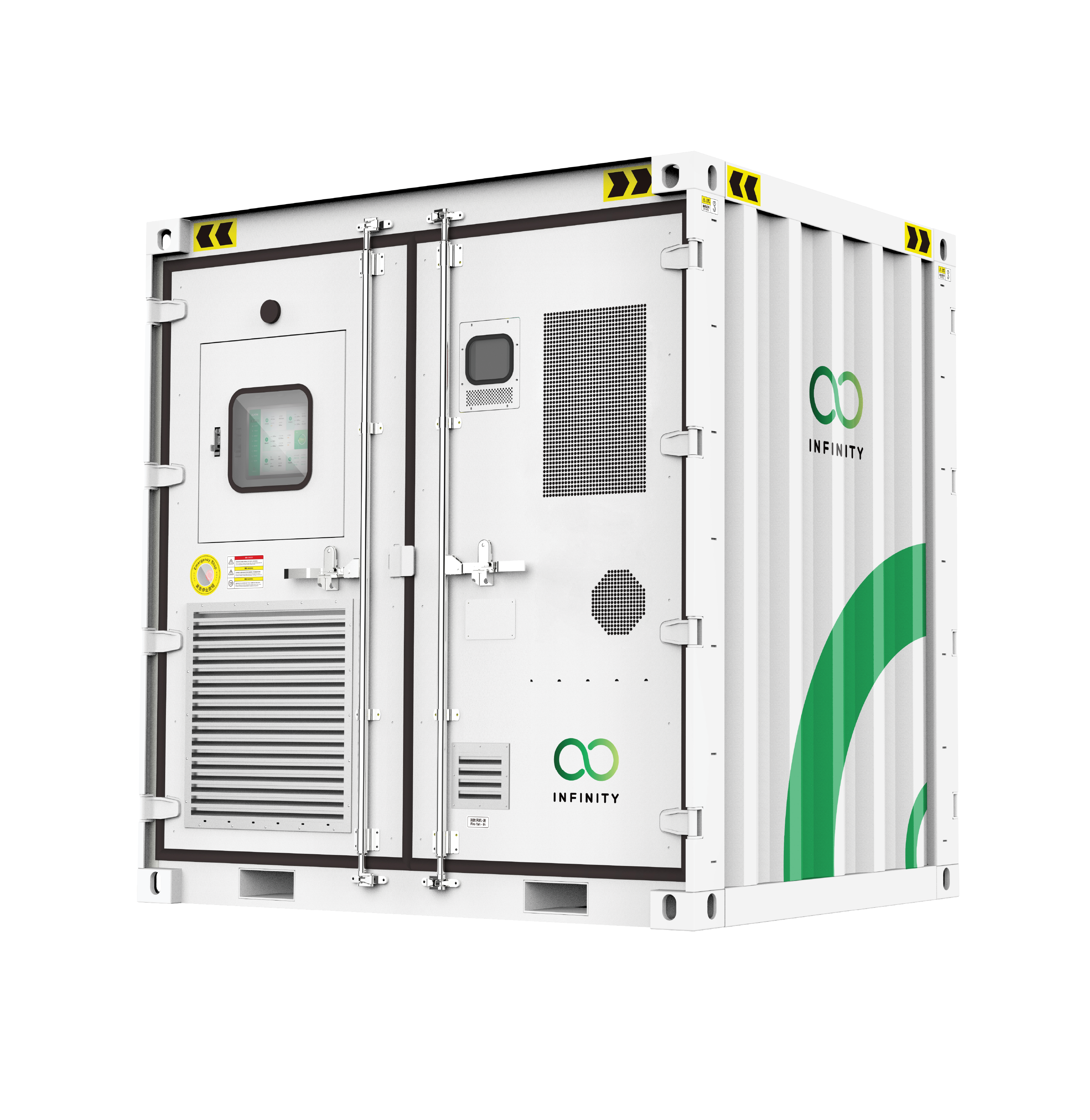

Infinity Cube

S

M

L

Nominal Rated Power

160 kW

225 kW

450 kW

Nominal Energy Storage Capacity

82 kWh

150 kWh

300 kWh

Frequency

50Hz

Rated Voltage (AC)

380V-440V

Battery System Voltage (DC)

600V-876V

Max. Current (A)

320 A

450 A

650 A

Battery Chemistry

Lithium Iron Phosphate (LFP) LiFeP04

Sound Level dBA @ 1m

<65 dBA

Ingress Protection

IP54

Operating Temperature

-20°C to 50°C

Fire Extinguisher System

Aerosol

Communication Mode

Ethernet, 5G wireless, RS485

Input Modes

Power Grid, Solar Energy, Generators

Weight (KG)

2500 kg

5100 kg

7500 kg

Dimensions (L x W x H)

1.1m x 1.65m x 2m

1.75m x 2.3m x 2.4m

2.5m x 2.3m x 2.4m

Expected Lifetime

10 years +

Certifications

UN, UL, IEC, IEE, CE
